Time Series Forecasting

In this tutorial, we will go through how to forecast with GenTS models and datasets.

Problem setting

Given a look back window, \(\mathbf{x}_{\text{obs}} \in \mathbb{R}^{L \times D}\), we are interested in the conditional distribution, i.e. \(p(\mathbf{x}_{\text{target}} \mid \mathbf{x}_{\text{obs}})\). From this distribution, we can sample possible forecasts \(\hat{\mathbf{x}}_{\text{target}} \in \mathbb{R}^{T \times D}\)

Implementation

1. import modules

import torch
from gents.dataset import Spiral2D
from gents.model import VanillaDDPM
from gents.evaluation import predict_visual, crps
from lightning import Trainer

/home/wcx/anaconda3/envs/gents/lib/python3.10/site-packages/tqdm/auto.py:21: TqdmWarning: IProgress not found. Please update jupyter and ipywidgets. See https://ipywidgets.readthedocs.io/en/stable/user_install.html
  from .autonotebook import tqdm as notebook_tqdm
CUDA extension for cauchy multiplication not found. Install by going to extensions/cauchy/ and running `python setup.py install`. This should speed up end-to-end training by 10-50%
Falling back on slow Cauchy kernel. Install at least one of pykeops or the CUDA extension for efficiency.
Falling back on slow Vandermonde kernel. Install pykeops for improved memory efficiency.

2. setup datamodule and model

Here, we set \(L=T=32\) for an example. Note that condition='predict' and obs_len=32 is also required for datamodule and model for setup.

dm = Spiral2D(
    seq_len=32,
    obs_len=32,
    batch_size=64,
    data_dir="../data",
    condition="predict",
)
model = VanillaDDPM(
    obs_len=dm.obs_len, seq_len=dm.seq_len, seq_dim=dm.seq_dim, condition="predict"
)

3. setup training

Utilizing lightning/pytorch-lightning, one can easily set:

• GPU devices

• Training epochs/steps

• Callbacks

• etc..

trainer = Trainer(max_epochs=10, devices=[0], enable_progress_bar=False)
trainer.fit(model, dm)

GPU available: True (cuda), used: True
TPU available: False, using: 0 TPU cores
HPU available: False, using: 0 HPUs
You are using a CUDA device ('NVIDIA GeForce RTX 3080 Ti') that has Tensor Cores. To properly utilize them, you should set `torch.set_float32_matmul_precision('medium' | 'high')` which will trade-off precision for performance. For more details, read https://pytorch.org/docs/stable/generated/torch.set_float32_matmul_precision.html#torch.set_float32_matmul_precision
LOCAL_RANK: 0 - CUDA_VISIBLE_DEVICES: [0,1,2,3]

  | Name     | Type | Params | Mode
------------------------------------------
0 | backbone | DiT  | 1.2 M  | train
------------------------------------------
1.2 M     Trainable params
512       Non-trainable params
1.2 M     Total params
4.734     Total estimated model params size (MB)
85        Modules in train mode
0         Modules in eval mode

Downloading 2DSpiral dataset in ../data/2DSpiral.pt

`Trainer.fit` stopped: `max_epochs=10` reached.

4. forecasting on the test set

Here n_sample=10 means we sample \(\hat{\mathbf{x}}_{\text{target}} \in \mathbb{R}^{T \times D}\) 10 times. The tensor shape of gen_data is [batch_size, T, D, n_sample]

# testing
dm.setup("test")
real_data = torch.cat([batch["seq"] for batch in dm.test_dataloader()])
cond_data = torch.cat([batch["c"] for batch in dm.test_dataloader()])

gen_data = model.sample(
    n_sample=10,
    condition=cond_data,
)

5. Evaluation

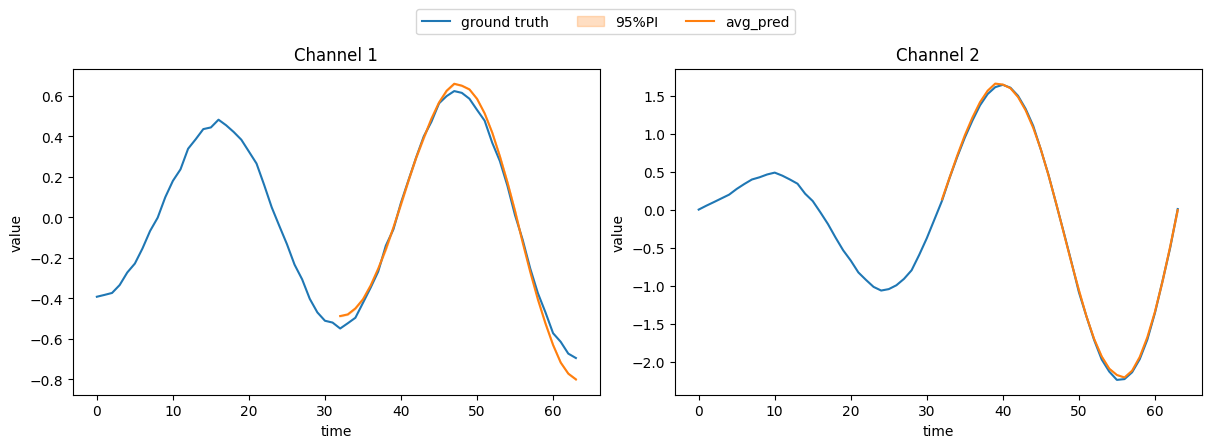

GenTS provides a plot function for visualizing probabilistic forecasts, as well as some metrics like CRPS to quantitative evaluation

predict_visual(
    real_data=real_data,
    gen_data=gen_data,
    data_mask=torch.ones_like(real_data).bool(),
    # uncomment the following line to save the plot
    # save_root='./predict.png'
)
crps(real_data[:,dm.obs_len:], gen_data)

np.float64(0.011574582569024659)
