Time Series Synthesis with Irregular Data

In this tutorial, we will demonstrate how to synthesize time series, given irregular time series.

Problem setting

Standard time series synthesis assumes that time series data are regularly sampled, i.e. a time series window \(\mathbf{x} \in \mathbb{R}^{T \times D}\), where \(T\) is series length and \(D\) is channels.

Regularly sampled, \(\mathbf{x} = [x_1, x_2, \cdots, x_T]\), is evenly spaced. However, some time series data may have missing time steps, or naturally unevenly measured (e.g. patient health measurements).

Then, how to generate complete T-step time series with irregular data? GenTS implement KoVAE, GTGAN, and neural differential equation-based models for such task.

Implementation

1. import modules

import torch
from gents.dataset import Spiral2D
from gents.model import KoVAE
from lightning import Trainer
from gents.evaluation import tsne_visual
from gents.evaluation import context_fid
import matplotlib.pyplot as plt

/home/wcx/anaconda3/envs/gents/lib/python3.10/site-packages/tqdm/auto.py:21: TqdmWarning: IProgress not found. Please update jupyter and ipywidgets. See https://ipywidgets.readthedocs.io/en/stable/user_install.html
  from .autonotebook import tqdm as notebook_tqdm
CUDA extension for cauchy multiplication not found. Install by going to extensions/cauchy/ and running `python setup.py install`. This should speed up end-to-end training by 10-50%
Falling back on slow Cauchy kernel. Install at least one of pykeops or the CUDA extension for efficiency.
Falling back on slow Vandermonde kernel. Install pykeops for improved memory efficiency.

2. setup datamodule and model

Here, we set irregular_droput=0.2 in Spiral2D to manually build a irregular dataset. This will randomly mark some time steps as missing, and render a data_mask for each batch.

For KoVAE and GTGAN, they need pre-interpolation coefficients for training, thus we need to add coeffs in datamodule by add_coeffs='cubic_spline'.

We set \(T=24\) for illustration.

dm = Spiral2D(
    seq_len=24,
    batch_size=64,
    num_samples=1000,
    data_dir="../data",
    irregular_dropout=0.1,
    add_coeffs='cubic_spline'
)
model = KoVAE(
    seq_len=dm.seq_len,
    seq_dim=dm.seq_dim,
    irregular_ts=True
)

# show data
dm.prepare_data()
dm.setup("fit")
full_data = next(iter(dm.train_dataloader()))["seq"]
data_mask = next(iter(dm.train_dataloader()))["data_mask"]
fig, ax = plt.subplots(1)
ax.plot(
    full_data.masked_fill(~data_mask, float("nan"))[0, :, :],
    label=["channel0", "channel1"],
)

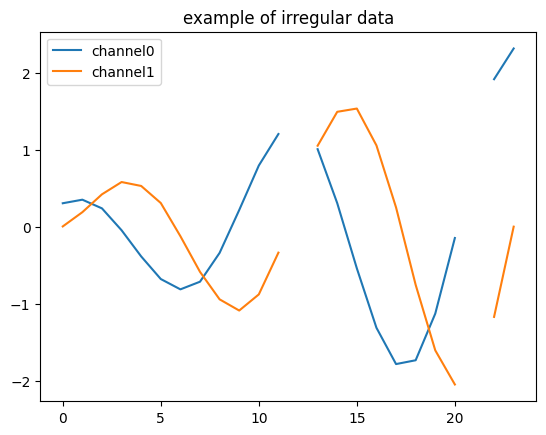

ax.set_title("example of irregular data")
ax.legend()

Downloading 2DSpiral dataset in ../data/2DSpiral.pt

<matplotlib.legend.Legend at 0x7f285b4cd330>

trainer = Trainer(max_epochs=500, devices=[0], enable_progress_bar=False)
trainer.fit(model, dm)

GPU available: True (cuda), used: True
TPU available: False, using: 0 TPU cores
HPU available: False, using: 0 HPUs
You are using a CUDA device ('NVIDIA GeForce RTX 3080 Ti') that has Tensor Cores. To properly utilize them, you should set `torch.set_float32_matmul_precision('medium' | 'high')` which will trade-off precision for performance. For more details, read https://pytorch.org/docs/stable/generated/torch.set_float32_matmul_precision.html#torch.set_float32_matmul_precision
LOCAL_RANK: 0 - CUDA_VISIBLE_DEVICES: [0,1,2,3]

  | Name           | Type               | Params | Mode
--------------------------------------------------------------
0 | encoder        | VKEncoderIrregular | 7.7 K  | train
1 | decoder        | VKDecoder          | 19.5 K | train
2 | z_prior_gru    | GRUCell            | 2.3 K  | train
3 | z_prior_mean   | Linear             | 336    | train
4 | z_prior_logvar | Linear             | 336    | train
5 | z_mean         | Linear             | 656    | train
6 | z_logvar       | Linear             | 656    | train
--------------------------------------------------------------
31.5 K    Trainable params
0         Non-trainable params
31.5 K    Total params
0.126     Total estimated model params size (MB)
20        Modules in train mode
0         Modules in eval mode
`Trainer.fit` stopped: `max_epochs=500` reached.

3. Evaluation

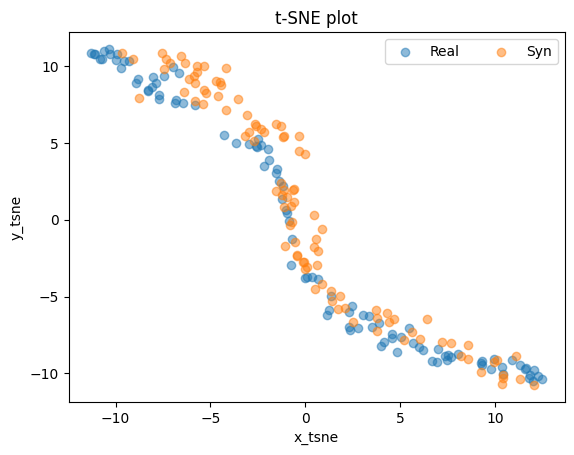

Qualitative evaluation: TSNE visualization

# testing
dm.setup("test")
full_data = torch.cat([batch["seq"] for batch in dm.test_dataloader()])
# generate samples with the same number as real data
gen_data = model.sample(n_sample=len(full_data))
tsne_visual(full_data, gen_data)

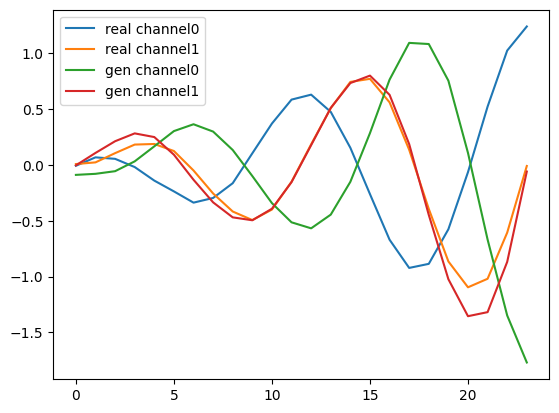

generated full-step time series V.S. real full-step data

plt.plot(full_data[0], label=['real channel0', 'real channel1'])
plt.plot(gen_data[0], label=['gen channel0', 'gen channel1'])
plt.legend()

<matplotlib.legend.Legend at 0x7f285021aaa0>

Quantitative evaluation: context-fid

context_fid(full_data.numpy(), gen_data.numpy(), device="cuda:0", train_data=dm.train_ds.data.numpy())

train a new ts2vec model

np.float64(0.6277645451550916)
