Time Series Generation with Class Label Guidance

In this tutorial, we will go through how to generate time series with class labels.

Problem setting

Given a time series class label (e.g. patient status), \(\mathbf{c} \in \mathbb{R}^{C}\), we are interested in the conditional distribution, i.e. \(p(\mathbf{x}_{\text{target}} \mid \mathbf{c})\). From this distribution, we can sample possible conditional time series \(\hat{\mathbf{x}}_{\text{target}} \in \mathbb{R}^{T \times D}\) that are aligned with the given class label.

Implementation

1. import modules

Print all models that suport class label guidance

import torch
from gents.dataset import Spiral2D
from gents.model import TimeVQVAE
from lightning import Trainer
from gents.evaluation import tsne_visual
from gents.evaluation import context_fid

import gents.model

class_model = []
for name in gents.model.__all__:
    model_cls = getattr(gents.model, name)
    if 'class' in model_cls.ALLOW_CONDITION:
        class_model.append(name)
class_model

/home/wcx/anaconda3/envs/gents/lib/python3.10/site-packages/tqdm/auto.py:21: TqdmWarning: IProgress not found. Please update jupyter and ipywidgets. See https://ipywidgets.readthedocs.io/en/stable/user_install.html
  from .autonotebook import tqdm as notebook_tqdm
CUDA extension for cauchy multiplication not found. Install by going to extensions/cauchy/ and running `python setup.py install`. This should speed up end-to-end training by 10-50%
Falling back on slow Cauchy kernel. Install at least one of pykeops or the CUDA extension for efficiency.
Falling back on slow Vandermonde kernel. Install pykeops for improved memory efficiency.

['VanillaVAE', 'TimeVQVAE', 'VanillaGAN', 'RCGAN', 'VanillaDDPM', 'VanillaMAF']

2. setup datamodule and model

Here, Spiral2D data has two class labels, i.e. clock-wise and counter clock-wise. We set \(T=32\) for illustration. Note that condition='class' and class_num=2 is also required for datamodule and model for setup.

dm = Spiral2D(
    seq_len=32,
    batch_size=64,
    num_samples=3000,
    data_dir="../data",
    condition="class",
)
model = TimeVQVAE(
    seq_len=dm.seq_len,
    seq_dim=dm.seq_dim,
    condition="class",
    class_num=2,
)

3. setup training

Utilizing lightning/pytorch-lightning, one can easily set:

• GPU devices

• Training epochs/steps

• Callbacks

• etc..

trainer = Trainer(max_steps=3000, devices=[0], enable_progress_bar=False)
trainer.fit(model, dm)

GPU available: True (cuda), used: True
TPU available: False, using: 0 TPU cores
HPU available: False, using: 0 HPUs
You are using a CUDA device ('NVIDIA GeForce RTX 3080 Ti') that has Tensor Cores. To properly utilize them, you should set `torch.set_float32_matmul_precision('medium' | 'high')` which will trade-off precision for performance. For more details, read https://pytorch.org/docs/stable/generated/torch.set_float32_matmul_precision.html#torch.set_float32_matmul_precision
LOCAL_RANK: 0 - CUDA_VISIBLE_DEVICES: [0,1,2,3]

  | Name          | Type                     | Params | Mode
-------------------------------------------------------------------
0 | encoder_l     | VQVAEEncoder             | 20.8 K | train
1 | encoder_h     | VQVAEEncoder             | 20.0 K | train
2 | vq_model_l    | VectorQuantize           | 2.2 K  | train
3 | vq_model_h    | VectorQuantize           | 2.2 K  | train
4 | decoder_l     | VQVAEDecoder             | 3.8 K  | train
5 | decoder_h     | VQVAEDecoder             | 2.9 K  | train
6 | transformer_l | BidirectionalTransformer | 656 K  | train
7 | transformer_h | BidirectionalTransformer | 786 K  | train
-------------------------------------------------------------------
1.5 M     Trainable params
0         Non-trainable params
1.5 M     Total params
5.978     Total estimated model params size (MB)
242       Modules in train mode
0         Modules in eval mode
`Trainer.fit` stopped: `max_steps=3000` reached.

4. Evaluation

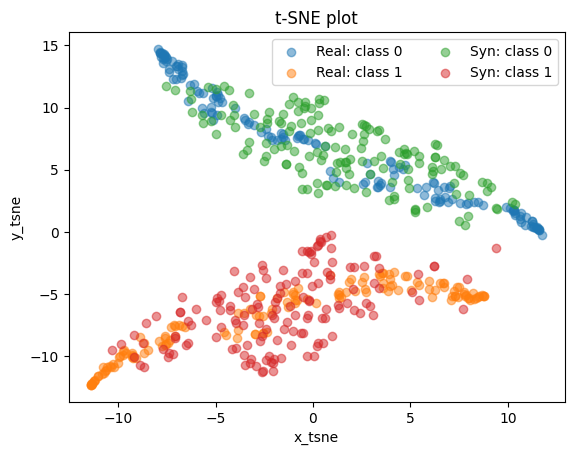

Qualitative evaluation: TSNE visualization

# testing
dm.setup("test")
real_data = torch.cat([batch["seq"] for batch in dm.test_dataloader()])
cond_data = torch.cat([batch["c"] for batch in dm.test_dataloader()])

# generate samples with the same number as real data
# and same condition
gen_data = model.sample(n_sample=len(real_data), condition=cond_data)  # [N, 64, 2]
tsne_visual(real_data, gen_data, cond_data)

Quantitative evaluation: context-fid

context_fid(
    real_data.numpy(), gen_data.numpy(), device="cuda:0", train_data=dm.train_ds.data.numpy(),
)

train a new ts2vec model

np.float64(0.8106987850150742)
